With the interpretation of quality assurance (QA) as dealing with defects adopted in the previous Section, we implicitly assumed that all discovered defects will be resolved within the software development process before product release. In this Section, we describe defect handling during the execution of specific QA activities and examine how different QA activities fit into different software processes. In addition, we also examine the QA activities from the perspective of verification and validation (V&V), and try to reconcile this V&V view with our view of QA as different ways of dealing with defects.

1. HANDLING DISCOVERED DEFECT DURING QA ACTIVITIES

An important part of the normal execution of various QA activities is dealing with the discovered problems, or handling defect. At the minimum, each discovered defect needs to be resolved. To ensure its resolution, some records must be kept and tracked. The exact way used to handle defects is also influenced by the specific QA activities that led to their initial discovery, the project environment, and other factors.

Defect handling and related activities

The most important activity associated with defect handling is defect resolution, which ensures that each discovered defect is corrected or taken care of through appropriate actions.

Each corrected or fixed defect needs to be re-verified to ensure failure-free executions under the same execution conditions.

In the case that a discovered defect is not corrected, all the parties involved must agree on the specific decisions or actions. For example, if a defect from testing is later re-classified as not to be a defect, a justification needs to be given and the decision agreed upon by the person who did the re-classification, the tester who reported it in the first place, and all other people involved. Similarly, if a defect is deferred because it is considered to be a minor problem that can be fixed in a future release, everyone involved must agree to this decision, and appropriate planning for future actions is needed. In addition to the planned future fix, other actions that need to be planned include relevant product support activities to deal with the possible problems.

To support defect resolution, two other important activities associated with defect handling are also needed: Defect logging, or the initial reporting and recording of a discovered defect. This ensures that a record will be kept for every discovered defect.

Defect tracking, which monitors and records what happened to each defect after its initial discovery, up until its final resolution.

Various specific information about the discovered defects can be recorded and updated through the defect handling process. Details about such information and its usage in quality assessment and improvement are included in Section 20. To ensure proper collection and usage of defect data, we need to pay special attention to the following in the defect discovery and resolution activities: Consistent defect interpretation and tracking: We need to distinguish execution failures, internal faults, and human errors. The specific problems need to be counted and tracked consistently.

Timely defect reporting: Because defect measurements are used to monitor and control software projects, we must ensure timely defect reporting to keep the information current.

Defect handling process and tools

Defect handling is an important part of QA that involves multiple parties. For example, during testing, the developers who fix discovered defects are typically not the same as the testers who observed and reported the problems in the first place. The exception is unit testing, which is usually carried out parallel to coding by the same person. However, most defects from unit testing are not formally tracked because they are considered as part of the implementation activities.

In many organizations, defect handling is implicitly assumed to be part of the project management activities, which is handled in similar ways as configuration management.

A formalized defect handling process highlights important activities and associated rules, parties involved, and their responsibilities. It is typically defined by the different states associated with individual defect status and transitions among these states due to status changes.

Such status changes follow certain rules defined by project management. For example, a newly reported defect has the "new" status, which may go through various different status changes, such as "working", "re-verify", etc., until it is "closed". Different defect handling processes may include different collections of defect status and other possible attributes.

The implementation of the defect handling process and enforcement of various related rules typically need the support of software tools, commonly referred to as defect tracking tools or defect handling tools. For example, during the testing of various large software systems in IBM, two defect tracking tools CMVC, an IBM product for configuration management and version control, and IDSS, an IBM internal tool, were used for defect tracking (Tian et al., 1997). Similarly, in many organizations, various software project management tools are also used for version control and defect tracking. The same trend is also carried over to the open source world. According to some recent studies (Zhao and Elbaum, 2003; Koru and Tian, 2004), tools such as Bugzilla (online at bugzilla . org) and Issuezilla (issuezilla.org) are typically employed to handling defects for medium and large open source projects.

Defect handling in different QA activities

Defect handling is normally implicitly assumed but not emphasized in various QA activities.

For example, during testing, we typically assume that discovered defects will be fixed, re-verified, and eventually closed. However, we often do not treat this as part of the testing activities but as something carried out parallel to testing, because defect fixing is typically done by developers or "code owners" instead of testers.

Among the three classes of the QA activities described in Section 3, defect detection and removal activities, such as testing and inspection, are more closely associated with defect handling. For example, the inspector of a program may make an initial note about a possible problem in the program code. When it is confirmed during the inspection meeting, it is formally recorded as a defect, which needs to be fixed and re-verified later in the later stages of the inspection process.

On the other hand, various defect prevention activities do not directly deal with defects or the discovered faults, but rather deal with various ways to prevent the injection of faults into the software systems. Consequently, there are little or no discovered faults during these QA activities. As a result, defect handling is not closely associated with defect prevention.

In defect containment activities, the focus is not on the discovery of underlying faults that cause failures and possible accidents. In fact, in these techniques, such as fault tolerance, faults are not typically identified, while their dynamic impact was tolerated or corrected.

Consequently, there are little or no discovered faults. As a result, defect handling is not closely associated with failure prevention and containment activities either.

2. QA ACTIVITIES IN SOFTWARE PROCESSES

QA activities form an integral part of the overall software process. We next examine the different ways that software QA activities can be carried out and integrated into different types of software development and maintenance processes.

QA in software development and maintenance processes In the software maintenance process, the focus of QA is on defect handling, to make sure that each problem reported by customers from field operations is logged, analyzed, and resolved, and a complete tracking record is kept so that we can learn from past problems for future quality improvement. In addition, such defect information can be used as additional input in planning for future releases of the same product or for replacement products. Among the different QA activities, defect containment activities play an important role in post-release product operations and maintenance support. For example, fault tolerance using recovery blocks can keep systems operational even in face of problems caused by environmental disturbances. However, repeated use of recovery blocks for the same situations may be an indication of software problems instead of environmental disturbances as the primary cause of some dynamic problems. Therefore, the systems need to be taken off-line and fixed in order for recovery blocks to work consistently in the future. Even for these techniques, most of the implementation activities need to be carried out during software development, not after product release, similar to the implementation of other product functions or features.

Most of the core QA activities, including defect prevention and defect reduction, are performed during software development instead of during in-field software support after product release. Therefore, we focus on the software development processes in our examination of how different QA activities fit into software processes. In what follows, we examine different QA activities in the general context of several commonly used software development processes, including waterfall, spiral, incremental and iterative development processes. We first examine the process characteristics and the organization of different development activities, and then relate these activities in the process to specific QA activities.

QA in the waterfall process

In the most commonly used waterfall process for many large software projects, development activities are typically grouped into different sequential stages to form a waterfall, although overlaps are common among successive pairs of stages (Zelkowitz, 1988). A typical sequence includes, in chronological order: product planning, requirement analysis, specification, design, coding, testing, release, and post-release product support. As a central part of QA activities, testing is an integral part of the waterfall development process, forming an important link in the overall development chain. Other QA activities, although not explicitly stated in the process description, can be carried out throughout other phases and in the transition from one phase to another. For example, part of the criteria to move on from each phase to the next is quality, typically in the form of checking to see if certain quality plans or standards have been completed or followed, as demonstrated by the results from various forms or reviews or inspections.

Various defect prevention activities are typically concentrated in the earlier phases of software development, before actual faults have been injected into the software systems.

There are several important reasons for this focus on early development phases:

--The error sources are typically associated with activities in these early phases, such as conceptual mistakes by designers and programmers, unfamiliarity with the product domain, inexperience with the specific development methodologies, etc. Therefore, error source removal, a primary method of defect preventions, is closely associated with these early development phases.

--Although some faults could be injected into the software systems during testing and other late development phases, the experience tells us that the vast majority of faults are injected in the early development phases, particularly in detailed design and implementation phases. Therefore, effective defect prevention through error blocking needs to be carried out during these phases.

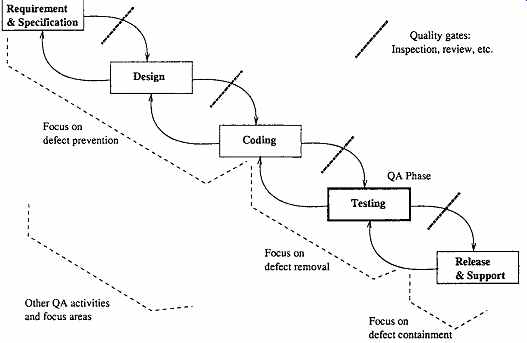

Figure 1 QA activities in the waterfall process

Because of the possibilities of defect propagations and the increasing cost over time or successive development phases to fix defects once they are injected into the system, we need to reduce the number of faults in software systems by the combination of defect prevention and application of QA techniques that can help remove software faults early. Some defect detection and removal techniques, such as inspection, can be applied to early phases, such as inspecting requirement documents, product specifications, and different levels of product designs. On the other hand, there are practical obstacles to the early fixing of injected defects. For example, dynamic problems may only become apparent during execution; and inter-dependency only becomes apparent with the implementation of related components or modules. Because of these reasons, other fault detection and removal activities, such as testing, are typically concentrated in the middle to late phases of software development.

Finally, failure prevention and containment activities, such as fault tolerance and safety assurance, are typically the focus of operational phases. However, their planning, design, and implementation need to be carried out throughout the software development process.

In some sense, they are equivalent to adding some necessary functions or features into the existing product to make them safe or fault tolerant.

Figure 1 illustrate how the different QA activities fit into the waterfall process. Three key characteristics of this activity distribution are illustrated:

--The phase with QA as the focus: Testing phase.

--QA activities, typically inspections and reviews, carried out at the transitions from one phase to the next are shown as barriers or gates to pass. The exception to this is between testing and release, where the reviews are typically accompanied by acceptance testing.

--Other QA activities scatter over all other development phases: The general distribution scope is shown by the dotted bracket, with a focus on defect prevention in the early phases, a focus on defect removal during coding and testing phases, and a focus on defect containment in operational support.

QA in other software processes

In incremental and iterative processes, the overall process can be viewed as consisting of several increments or iterations, with each of them following more or less the same ministages corresponding to those in the waterfall process. What is more, at the end of each increment or each iteration, the newly developed part needs to be integrated into the existing part. Therefore, integration testing plays a very important role, to make sure that different parts can inter-operate seamlessly to fulfill the intended functionalities correctly together.

The QA activities performed in the spiral process are similar to those performed in incremental and iterative processes. The minor difference is typically in the risk focus adopted in spiral process, where risk identification and analysis play an important role on the decision as to which part to work on next in the subsequent spiral iteration. This risk focus leads naturally to selective QA with a non-uniform effort applied to different parts of the software systems, with high-risk parts receiving more attention than other parts. In terms of testing techniques, usage-based statistical testing according to user operational profiles may fit this process better than other testing techniques.

The agile development method and extreme programming that have become popular recently, especially in the Internet-based and open-source development projects, can be treated as special cases of incremental, iterative, or spiral process models where many of their elements are used or adapted. In fact, QA activities, particularly testing and inspection, play an even more important role than in the traditional software development processes. For example, test-driven development is an integral part of extreme programming (Beck, 2003), and inspection in the form of two person inspection, or programmer pairs, is extensively used (Beck, 1999).

The details about the application of different QA activities and related techniques to different software processes, phases, and activities will be covered when we describe each specific QA technique in Part II and Part III.

3. VERIFICATION AND VALIDATION PERSPECTIVES

As described in Section 1, the basic quality expectations of a user are that a software performs the right functions as specified, and performs these specified functions correctly over repeated use or over a long period of time. The related QA activities to ensure that the right functions are performed are typically grouped as validation activities; while the ones to ensure the correct or reliable performance of these specified functions are typically grouped as verification activities. The QA activity classification we used in Section 3 can be mapped into this binary partition of validation and verification activities using the related defects as the middle link between the two classification schemes.

Validation, failures, and QA activities

Validation activities check whether a function needed and expected by the customers is present in a software product. An absence of an expected function or feature is clearly linked to a deviation of expected behavior, or linked to a software failure. However, this is a special sub-class of failures, where an expected function is absent. By extension, when an unexpected function is present, it can be considered as a failure of this kind as well, because a customer is not likely willing to pay for something not needed. Even if it is free, the customer might be worried about possible interference with other critical needs.

Therefore, various QA activities linked with such kind of failures directly observable by software users can be viewed as validation activities. Examples of QA activities that can be classified as validation activities include:

--System testing, where the focus is the overall set of system functions to be provided to users;

--Acceptance testing and beta testing, where the focus is the assessment of software acceptance or performance by users;

--Usage-based statistical testing, where the operational environment by target users is simulated during software testing before product release;

--Software fault tolerance, which focuses on providing continued service expected by customers even when local problems exist;

--Software safety assurance activities, which focus on providing the expected accident free operations or reducing accident damage when an accident is unavoidable.

Even in the case where a specific software QA activity is not directly dealing with the above type of failures, if the intention is to detect or prevent faults that are linked to such failures, the specific activity in question can also be classified as a validation activity. For example, in inspections based on usage scenarios, faults that are likely to lead to failures under usage scenarios by target customers are the focus of the inspect effort. Therefore, this specific inspection activity can be viewed as a validation activity. In addition, if a preventive action is aimed at preventing specific problems for specific operational environments by customers, it can be classified as a validation activity as well.

Verification, conformance, and QA activities

Software verification activities check the conformance of a software system to its specifications. In performing verification activities, we assume that we have a well defined set of specifications. A deviation from the specification is either a fault or a failure, depending on whether the behavior is specified or other software related entities are specific, such as through coding standards, design patterns, etc.

When failures are involved in verification activities, we are typically dealing with internal system failures and overall system failures in the form of incorrect behavior, instead of the evidence of presence or absence of certain functions or feature directly observable by customers. For example, checking how one component works with another component is a verification activities, because it tries to eliminate internal failures related to interoperability among internal components, while customers only care if the overall functions are implemented and implemented correctly.

When a function or feature expected by the customers is present, the activity to determine whether it performs or behaves expectedly is then a verification activity. Therefore, connected to validation activities, there are almost always accompanying verification activities as well. In the above examples of various forms of testing as primarily validation activities, they all include corresponding verification components. They are also used to verify the correct implementation of various functions visible to customers. The testing environment for these activities needs to be similar to that will be subjected to by the product after it is purchased by the customers and put into operational use.

When we are checking non-behavioral specifications, non-conformance indicates the presence of faults or errors. For example, a wrong algorithm or an inappropriate data structure is used, some coding standard is violated, etc. These problems are typically associated with various types of software faults. These faults, when triggered, may cause system failures. Similarly, not following prescribed processes or selected methodologies, or misunderstanding of needed algorithms and data structures, is associated with errors or error sources that cause injection of faults. Therefore, all the QA activities we classified as dealing directly with faults, errors, or error sources can be classified as verification activities.

Verification and validation in software processes

QA activities can also be classified by the binary grouping of verification vs. validation activities. Validation checks the conformance to quality expectations of customers and users in the form of whether the expected functions or features are present or not. On the other hand, verification checks the conformance of software product implementation against its specifications to see if it is implemented correctly. Therefore, validation deals directly with users and their requirements; while verification deals with internal product specifications. In the software development process perspective, different processes may involve customers and users in different ways. Therefore, verification and validation activities may be distributed in these different processes differently.

In the waterfall process, direct involvement of users and user requirement is at the very beginning and the very end of the development process. These phases include project planning, market analysis, requirement analysis, specification, acceptance testing, product release, and post-release product support and maintenance. Therefore, these are the phases where validation activities may be the focus. For example, overall product specifications need to be validated through inspections or reviews to make sure they conform to customer requirements. Various user-oriented testing, such as system, integration, and acceptance testing focus on the validation of user requirement in the form of checking if the functions and features expected by users are present in the software product scheduled to be delivered.

Similarly, beta testing and operational support make sure the software product is validated, that is, it is doing what it is supposed to do under the application environment of the target customers.

On the other hand, many development activities in the middle part of the waterfall process do not involve customers and users directly. A set of internal specifications needs to be followed or other rules or criteria need to be satisfied. For example, the product designs must satisfy the product specifications; lower-level designs must conform to the constraints imposed by the high-level designs; and the final product implementation must follow the design decisions made earlier. The satisfactory conformance of these specifications, designs, and rules is the focus of various verification activities. For example, through inspections of design documents, satisfaction of design constraints and product specifications can be verified. Program correctness with respect to its formal specifications can be formally verified using various formal verification techniques. Unit and component testing can be used to verify the unit or the component against its specifications in the form of detailed designs for them.

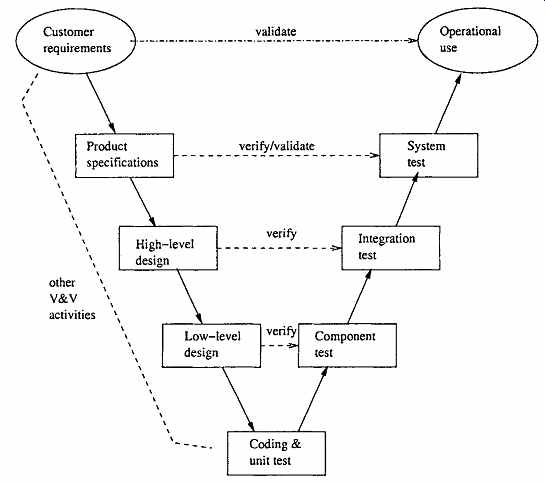

Figure 2 Verification and validation activities associated with the V-Model

These verification and validation activities can be best illustrated by the V-model in Figure 2, a variation of the waterfall process model where the different development phases are presented in a V-shaped graph, relating specific verification or validation activities to their corresponding requirements or specifications. For example, customer requirements are validated by operational use; while product specification, high-level design, and low-level design are verified by system test, integration test, and component test, respectively. In addition, system test also validates the product by focusing on how the overall operations under an environment that resembles that for target customers. In a sense, the users' operational environment is captured as part of the product specification or as part of the testing model. At the bottom, coding and unit testing are typically grouped in a single phase, where the code itself specifies the expected behavior and needs to be verified through unit test. Sometimes, various other QA activities, such as inspections, reviews, walkthroughs, analyses, formal verification, etc., are also associated with the left arm of the V-model and illustrated by additional dotted lines pointed to the specific phases.

Similar to the mapping of QA activities to other process models above, validation and verification activities can be mapped into non-sequential processes such as incremental, iterative, spiral, and extreme programming processes. Typically, there is some level of user involvement in each part or iteration. Therefore, validation plays a more important role in these processes than in the waterfall process or the V-model.

4. RECONCILING THE TWO VIEWS

The above descriptions of verification and validation activities included examples of specific QA activities. These specific QA activities were also classified using our scheme according to the generic ways of dealing with defects. Through this connection and the inter-relations represented therein, we can establish the relationship and the mapping between the verification and validation (V&V) view on the one hand and our defect-centered (DC) view and classification on the other hand. In addition, we can use the process information as presented in Figure 1, Figure 2, and related discussions to help us with this mapping, as discussed below.

As described in Section 3 (above) and illustrated in Figure 2, most QA activities carried within the software development process can be classified as verification activities, while only those directly dealing with user requirements, typically near the very beginning or the very end of software development process, are associated with validation activities. On the other hand, as described in Section 2 (above) and illustrated in Figure 1, various defect prevention activities are typically concentrated in the earlier phases of software development; defect reduction is typically concentrated in the middle to late phases of software development; while defect containment activities are typically the focus of operational phases, with its planning, design, and implementation carried out earlier during software development.

Based on this comparison, we could draw some tentative connections to link verification with defect reduction activities, and validation with defect prevention and defect tolerance.

However, there are complications and adjustments due to the following: Many specific QA activities deal with both the verification and the validation aspects.

For example, different types of testing in the V-model in Figure 2 can be classified either as verification test or validation test or contain both elements: The focus of the acceptance test is clearly validation, while that for unit test is verification, however, system test contains both the verification and validation components.

The situation with inspection as an important defect reduction activity is similar to testing above. However, due to the absence of execution and direct observations of failures, inspection is more closely connected to verification than to validation. For example, most of the inspection activities are performed on software code or design, which are classical verification activities. The less used requirement inspections and usage scenarios based inspections are closer to validation.

Defect prevention deals with error source elimination and error blocking, while both verification and validation deal with failures and faults. Therefore, there is no direct connection between defect prevention and the V&V view of QA activities, but only indirectly through the target of preventive actions. For example, if the target is eliminating ambiguity in the requirement or the product domain knowledge, it is indirectly connected to validation. If the target is to block syntactic faults or other faults due to the proper selection and usage of processes, methodologies, technologies, or tools, it is indirectly connected to verification.

--Closely related to both defect prevention and formalized inspection is the use of formal method as a QA activity. The formal specification part is close to validation, but indirectly, much like the defect prevention activities above. The formal verification part naturally falls into verification activities, verifying the program or design correctness with respect to its formal specifications.

Defect containment activities, such as through fault tolerance and safety assurance, are more closely related to validation activities than verification due to their focus on avoiding global failures or minimizing failure damages under actual operational environments. However, when such defect containment features are specific for a software system or an embedded system, the conformance to this part of the specification can be treated much the same as other verification activities to check the general conformance to specifications.

This relationship between the two views can be summarized in Table 1, for each of the DC view categories and related major QA activities, we point out whether it is related to verification, validation, or both, directly (unless specified otherwise) or indirectly.

Therefore, we can follow the three-part classification outlined in Section 3 without losing the general perspectives of validation and verification.

----------

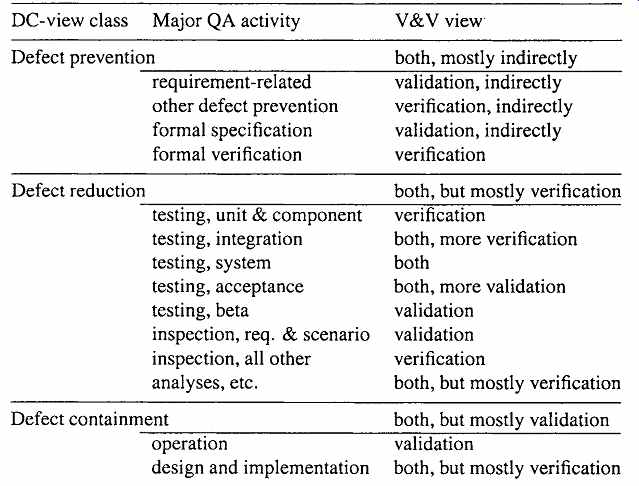

Table 1

QA activities: Mapping from defect-centered (DC) view to verification and validation (V&V) view

DC-view class Major QA activity V&V view

Defect prevention both, mostly indirectly requirement-related validation, indirectly other defect prevention verification, indirectly formal specification validation, indirectly formal verification verification

Defect reduction both, but mostly verification testing, unit & component verification testing, integration both, more verification testing, system both testing, acceptance both, more validation testing, beta validation inspection, req. & scenario validation inspection, all other verification analyses, etc. both, but mostly verification

Defect containment both, but mostly validation operation validation design and implementation both, but mostly verification

-----------

5. CONCLUSION

To summarize, defect handling is an integral part of QA activities, and different QA alternatives and related activities can be viewed as a concerted effort to ensure software quality.

These activities can be integrated into software development and maintenance processes as an integral part of the overall process activities, typically in the following fashion:

--Testing is an integral part of any development process, forming an important link in the overall development chain.

Quality reviews or inspections often accompany the transition from one phase or development activity to another.

--Various defect prevention activities are typically carried out in the early stages.

Defect containment activities typically focus on the later, operational part of the development process, although their planning and implementation need to be carried out throughout the development process.

These QA activities can also be partitioned into verification and validation (V&V) activities using a bi-partite classification scheme in the so-called V&V view. Similarly, they can be partitioned by the generic way they employ to deal with errors, faults, or failures as different defect-centered (DC) activities using our tri-partite classification scheme in the so-call DC view. Both views and both classification schemes have their useful purposes and implications. Our tri-partite classification provides a balanced and systematic scheme to organize and classify existing software QA activities. It can also be easily mapped to the commonly used bi-partite scheme of validation and verification activities. Consequently, we will follow this classification in the rest of the guide without losing the generality associated with the other commonly used views of QA activities.

QUIZ

1. Why is defect tracking and defect handling important in quality assurance?

2. In your project, do you have a defined defect handling process? If so, describe the process and compare it with the generic description in this Section. If not, can you design one?

3. Define the different defect status and draw a chart/graph to depict the allowable defect status changes based on your knowledge of your actual defect handling process. You may use a hypothetical project and its defect handling process to complete this exercise if you are not working on a project or if your project does not have a defined defect handling process.

4. What measurements can be taken during QA activities?

5. Document the different QA activities and their organization/grouping in your development or maintenance process and compare them to the generic ones descried in this Section.

6. Is your organization performing more verification, more validation, or both equally? What is verification and validation? How do they relate to defects?
