The garbage disposer provides a convenient and sanitary way to dispose of food waste (Figr.1). No sorting or separating of the food waste is necessary. The garbage disposer is designed to handle all types of food waste. If, however, the garbage disposer drains into a septic tank, inorganic wastes, such as egg shells, lobster, crab, and shrimp shells should be kept at a minimum. Items such as tin cans, glass, china, bottle caps, metal, etc., should never be placed in the garbage disposer because they might damage the appliance and plug the drain.

TYPES

There are two types of operating methods available in garbage disposers.

Continuous feed disposers

A continuous feed disposer requires an on-off electrical switch that is remote from the disposer. Before food is placed into the hopper, the user must turn on the cold water faucet, and turn on the electrical switch. Then, the food waste is placed into the hopper. The food waste will be ground up, and expelled into the drain.

Batch feed disposers

In a batch feed disposer, the on-off operation of the disposer is controlled by the stopper. The on-off switch is built into the hopper. The stopper is the component that completes the circuit that allows the disposer motor to run. The hopper will hold the food waste until the user is ready to dispose of the waste. The food waste will be ground up, and expelled into the drain.

PRINCIPLES OF OPERATION

When the food is placed into the hopper, and the disposer is running, the centrifugal force throws the food waste outward against the cutting edges of the shredder ring (Figr.2). The pivoting impeller arms, attached to the flywheel, push the food waste around and into the teeth of the shredder ring (Figr.3). As the food waste is pushed against, and cut by, the shredder ring, water running into the hopper flushes the ground food waste between the flywheel and the shredder ring; then washing into the drain housing assembly, where it’s expelled into the drain.

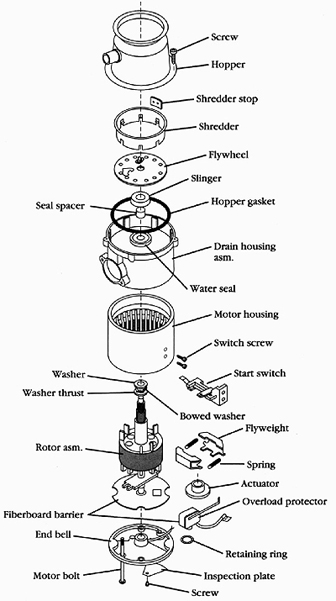

__1 Exploded view of a garbage disposer

  • Fiberboard barrier
  • End bell.
  • Motor housing
  • Motor bolt
  • Shredder stop
  • Shredder
  • Flywheel
  • Drain housing asmbl.
  • Seal spacer
  • Washer.
  • Washer thrust.
  • Start switch
  • Overload protector
  • Inspection plate
  • Screw

SAFETY FIRST

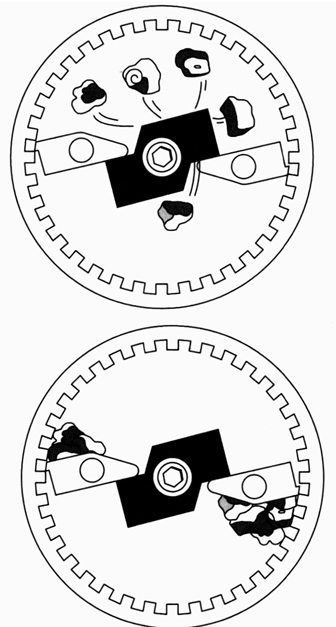

__2 (above) Food waste is forced outward against shredder ring. __3 (below) Impeller directing food waste into teeth of the shredder ring.

Any person who cannot use basic tools, or follow written instructions, should not attempt to install, maintain, or repair any garbage disposers. Any improper installation, preventive maintenance, or repairs could create a risk of personal injury or property damage.

If you don’t fully understand the installation, preventive maintenance, or repair procedures in this section, or if you doubt your ability to complete the task on your garbage disposer, then please call your service manager.

These precautions should also be followed:

1. Don’t put your fingers or hands into the garbage disposer.

2. When removing foreign objects, always use a long-handled pair of tongs or pliers.

3. To reduce the risk of flying debris that can be expelled by the disposer, always be sure that the splash guard is properly installed.

4. When replacing the garbage disposer, always be sure that the disposer is properly grounded.

5. Before attempting to free a jam in the garbage disposer, always disconnect the electric supply to the disposer.

GARBAGE DISPOSERS IN GENERAL

Much of the troubleshooting information in this section covers the various types of garbage disposers in general, rather than specific models, in order to present a broad overview of service techniques. The pictures and illustrations that are used in this section are for demonstration purposes; for clarifying the description of how to service these units; and in no way reflects on a particular brand’s reliability.

To free jams from foreign objects

When foreign material falls into the disposer, and the motor jams, it will trip the mo tor overload protector; otherwise known as the reset button (Figr.1). When this happens, follow these steps to free the jam:

1. Turn off the electricity to the disposer, and shut off the water.

2. Insert the service wrench into the center hole at the bottom of the disposer (Figr.4), and work the wrench back and forth until the motor assembly is turning freely.

3. To free a tight jam, insert a plying tool alongside the grinding protrusion near the outside edge of the flywheel. Be sure that you place the prying tool on the proper side of the protrusion so that when pressure is applied, the flywheel will move (Figr.5).

4. Remove the foreign object with tongs.

5. Wait for the motor to cool a few minutes before you press the reset button.

6. Reconnect the electric supply, turn on the cold water and test the disposer.

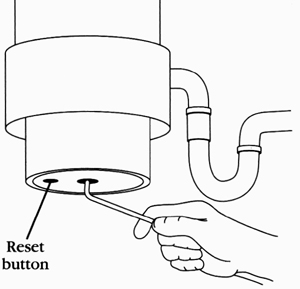

__4 Insert service wrench, turn wrench, and reset the overload protector button.

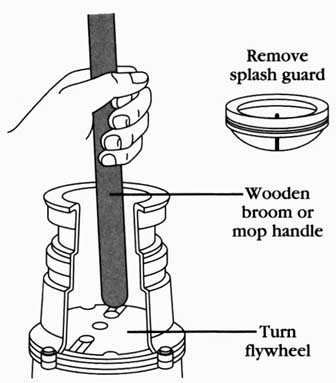

5 Insert prying tool into the hopper: - Turn flywheel

Installation of garbage disposer

Figr. -6 shows some typical installations of garbage disposers. Every newly purchased garbage disposer comes with installation instructions, a use and care manual, and a warranty. Listed are the steps taken to install a new disposer.

1. Read the use and care manual.

2. Clean out the sink’s drain line.

3. Disconnect electrical supply.

a. Continuous feed disposers need a wall switch and a receptacle.

b. Batch feed disposers need a receptacle, or must be wired directly.

4. Be sure to observe all local codes and ordinances for electrical and plumbing connections when installing or repairing disposers.

5. Follow the manufacturer’s installation instructions.

6. After completing the installation, check for water leaks.

7. Turn on the electric, and test the operation of the garbage disposer.

GARBAGE DISPOSER MAINTENANCE

The garbage disposer is permanently lubricated; thus, it never has to be oiled. When the disposer is used properly, it self-cleans itself. If there is an odor coming from the inside of the disposer, you can deodorize the disposer. To deodorize the garbage disposer, take some orange or lemon rinds and grind them up in the disposer. This will dispel unpleasant odors, and leave the sink with a sweet smell. Another way to deodorize the disposer is to take about a dozen or so ice cubes, sprinkled with a generous amount of household scouring power, and grind them up in the disposer without running the water. Flush the disposer for one minute. This will allow any debris to be expelled into the drain.

Drain blockage

To avoid drain blockage when using the garbage disposer, allow the cold water to flow for a sufficient time after grinding the food waste, to be sure that all of

Remove splash guard broom or mop handle

Double bowl center outlet

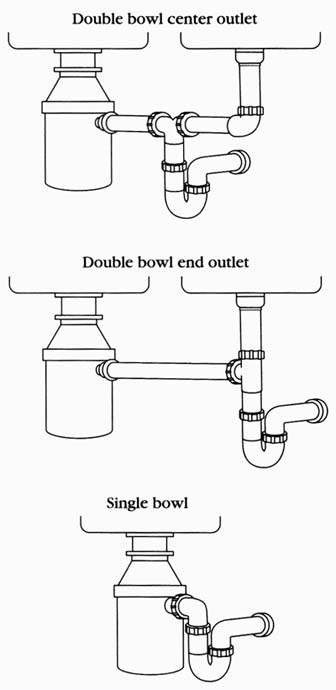

__6 Typical garbage disposer installations.

the waste is flushed away. The ground waste and water mixture flows at the rate of two seconds per foot in a horizontal drain line. It’s recommended that the user allows the water to flow for a minimum of 15 to 30 seconds after grinding the food waste.

The use of cold water in the garbage disposer will congeal and harden the grease, making its disposal easier. Never use chemicals, or solvent drain compounds because they can cause serious damage to the disposer.

The disposer should be used daily to flush the lines. If the dishwasher drain hose is connected to the disposer, it too should be used daily, to prevent the dish washer drain hose from becoming clogged.

Double bowl end outlet

STEP-BY-STEP TROUBLESHOOTING BY SYMPTOM DIAGNOSIS

In the course of servicing an appliance, don’t tend to overlook the simple things that might be causing the problem. Step-by-step troubleshooting, by symptom diagnosis, is based on diagnosing malfunctions, with their possible causes arranged into categories relating to the operation of the garbage disposer. This section is intended only to serve as a checklist to aid you in diagnosing a problem. Look at the symptom that best describes the problem you are experiencing with the garbage disposer, then proceed to correct the problem.

__ Overload protector trips

1. Check for voltage at the garbage disposer.

2. Does the motor hum when the disposer is turned on?

3. Was the foreign material removed from the hopper? Check and be sure that the flywheel turns easily.

4. Does the motor stay in the start winding? Use the ammeter to perform this check. Check the name plate for the correct amperage rating.

5. Did you check the overload protector?

6. Is there a shorted or open winding in the motor?

7. Is the start relay OK?

__ Erratic operation

1. Are there any loose connections? For example: wiring, switch, motor, etc.

2. Is the stopper worn or broken?

3. Is the wall switch defective?

4. Is the garbage disposer wired correctly?

__Garbage disposer won’t run

1. Did the overload protector trip?

2. Is the fuse or circuit breaker, blown or tripped?

3. Is the wall switch OK?

4. Are the motor windings burned Out?

5. Check for open or shorted wiring.

6. Is the relay defective?

__ Garbage disposer won’t stop

1. Is the wall switch defective?

2. Check for a short in the wiring.

3. Check for incorrect wiring.

__ Slow water flow from garbage disposer

1. Check to see if the drain is partially clogged.

2. Check the shredder teeth, and see if they are clogged with food waste. This is caused by insufficient water flow.

Garbage disposal -- slow grinding

1. Check for undisposable matter in the hopper.

2. Is the flywheel damaged?

3. Is there sufficient water flow?

4. Is the shredder ring worn or broken?

__ Abnormal noise in the garbage disposer

1. Check for undisposable matter in the hopper.

2. Are the mounting screws loose?

3. Is the flywheel broken?

4. Check the motor bearings, they might be damaged or worn.

__ Garbage disposer leaks

1. Disconnect the electricity. Then, locate the water leak.

2. Check for loose mounting screws.

3. Check the sink flange. There might be insufficient putty around the flange.

4. Check for leaks around the tail pipe gasket.

5. Check for holes in the hopper.

6. Is the dishwasher/disposer connector cracked and leaking?

7. Is water leaking through the motor assembly? The seals might be bad.

REPAIR PROCEDURE

The repair procedure in this section is a complete inspection and repair process for the garbage disposer components; containing the information you need to test a component that might be faulty; and to replace it, if necessary.

Garbage disposer assembly

The typical complaints associated with garbage disposer failure are: 1. When the motor runs, there are loud noises. 2. Water leaking from bottom of the disposer. 3. The fuses or circuit breaker will trip when you start the disposer.

1. Verify the complaint Verify the complaint by operating the disposer. Listen carefully, and you will hear if there are any unusual noises, or if the overload protector trips.

2. Check for external factors You must check for external factors not associated with the garbage disposer. Is the disposer installed properly? Does the disposer have the correct voltage?

3. Disconnect the electricity Before working on the garbage disposer, disconnect the electricity. This can be done by pulling the plug out of the wall receptacle. Be sure that you only remove the disposer plug. Or disconnect the electricity at the fuse panel or at the circuit breaker panel. Turn off the electricity.

4. Remove the garbage disposer To access to the disposer assembly, the disposer must be removed. Start with disconnecting the drain line from the disposer discharge tube. Next, remove the dishwasher drain hose connection, if so equipped (Figr.7A). Insert the service wrench into the right side of the flange body. Caution: place one hand under the disposer to keep it from falling.

Now, turn the flange to the left to free the disposer from its mounting (Figr.7B). Turn the disposer upside down, and place it on a protective surface. This will protect the floor in the cabinet from damage. Remove the terminal plate (Figr.7C). Remove the ground wire and wire nuts from the service cord (Figr.7D, F). Separate the service cord wires from the motor wires. On models that are wired directly, loosen the cable clamp screws and remove the cable from the disposer (Figr.7E).

5. Disassemble the garbage disposer Place the garbage disposer upside down on a protective surface, or on a workbench. Some models have an insulated outer shell that must be removed first. Most disposers will separate into four or five sections depending on the model you are servicing. Disposers that separate into four sections consist of:

1. Top container, or hopper body

2. Upper end bell, or drain, housing assembly, cutting elements, and rotor and shaft assembly

3. Stator

4. Lower end bell assembly

Disposers that separate into five sections consist of:

1. Top container or hopper assembly

2. Stationary shredder

3. Upper end bell, or drain, housing assembly, rotor shredder, and rotor and shaft assembly

4. Stator

5. Lower end bell assembly

Before removing any screws from the disposer, you must place scribe marks on the lower end bell and stator, the upper end bell and stator, and the upper end bell and hopper. These scribe marks will be used to align the sections properly when the garbage disposer is reassembled. Remove the four through-bolts from the lower end bell assembly and separate the sections of the disposer. Label the wires from the stator to the lower end bell assembly. Disconnect them. Be cautious if the garbage disposer has a capacitor.

Warning: don’t touch capacitor terminals. A charged capacitor can cause severe shock, when both terminals are touched. A charged capacitor will hold a charge until it’s discharged.

6. Inspect and test the garbage disposer components Inspect the hopper assembly for cracks, holes, and (on some models) corrosion around the dishwasher connection. Also, inspect the gasket area for nicks or rough spots. Inspect the gasket or “0” ring for cuts, breaks, or worn areas. Replace it if it’s defective. Inspect the upper end bell, or drain, housing assembly for the same. Test the centrifugal switch for binding by manually operating it. It should slide up and down freely. Inspect the rotor and thrust washer for cracks, breaks, or wear. If the upper drain housing and rotor assembly failed inspection, replace the garbage disposer as a complete unit.

Terminal plate; Wire; Green ground screw

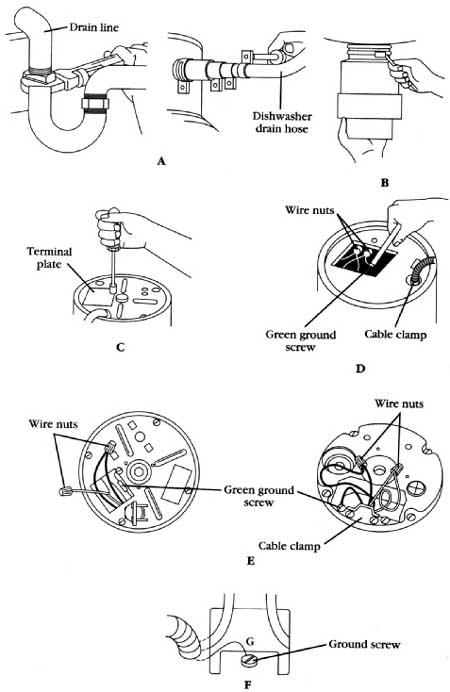

__7 Illustrating the steps taken to remove the garbage disposer

Wire nuts; Cable clamp

Before testing the capacitor, it must be discharged. Use a screwdriver with an insulated handle. Discharge the capacitor by shorting across both terminals. Remove the wire leads, one at a time, with a pair of needle nose pliers. Set the ohmmeter on the highest scale, place one probe on one terminal, then attach the other probe to the other terminal (Figr.8). Observe the meter action. While the capacitor is charging, the ohmmeter will dip toward zero ohms, for a short period of time. Then, the ohmmeter reading, will return to infinity. If the ohmmeter reading deflects to zero, and does not return to infinity, the capacitor is shorted, and should be replaced. If the ohmmeter reading remains at infinity, the capacitor is open, and should be replaced.

Inspect the stator windings for nicks, cuts, or burned spots. Set the ohmmeter on R x 1, and test the stator windings for open, grounded, or shorted windings. Test both the start and run windings. If the stator windings fail the test, replace the garbage disposer as a complete unit. Set the ohmmeter on R x 1, and test the start switch. Place the probes on the wires leading to the switch. To ensure an accurate meter reading, isolate the start switch wires from the remainder of the circuitry. The meter reading will indicate an open Circuit. If the test fails, replace the start switch. Next, test the overload protector. Isolate the overload protector wires from the remainder of the circuitry. Then, place the ohmmeter probes on the overload protector wires. Push the red reset button in on the overload protector. The ohmmeter reading will indicate a closed circuit. If this test fails, replace the overload protector.

7. Reassemble and reinstall the garbage disposer: To reassemble the disposer, just reverse the disassembly procedure, and reassemble. Check to be sure that all wiring is correct. Remember to use the scribe marks to align the sections properly before inserting the through-bolts. Also, be careful not to damage any of the gaskets or “0” rings when assembling the garbage disposer. Reconnect the service cord wires to the motor wires, and tighten the cable clamp screws (Figr.7E). Next, reconnect the ground wire to the green ground screw (Figr.7D, F). Reinstall the terminal plate and screw (Figr.9A).

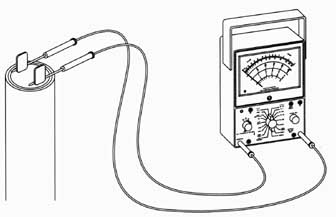

__8 Place ohmmeter test leads on the capacitor terminals.

Lift the disposer, and position it so that the disposer’s three mounting ears are lined up under the ends of the sink mounting assembly screws ( Figr. --9B, C). The disposer will now hang by itself. After the plumbing is reconnected, you will then tighten the ring using the service wrench. Rotate the disposer to align the discharge tube with the drain trap (Figr.9D). Reconnect them. Next, reconnect the dishwasher drain hose connection, if so equipped (Figr.9E). Finally, place the service wrench into the left side of one of the disposer mounting lugs, located on the top of the disposer. Then, turn the wrench to the right until it’s firmly secured, engaging the locking notch (Figr.9F).

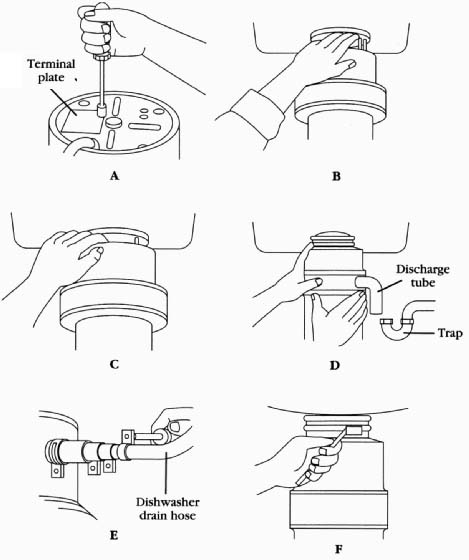

__9 Illustrating the steps taken to reinstall the garbage disposer

Before you reconnect the electricity, check for leaks by running the water. Inspect all connections. Inspect the disposer for water leaks also. If no leaks are present, turn on the electric, and run the disposer; re-inspect for any water leaks.

Before installing a new garbage disposer, the dishwasher connection plug must be removed, if the defective disposer was so equipped with a dishwasher drain hose connection. The dishwasher connection plug is removed by knocking the plug out with a hammer and some blunt instrument, such as a dowel or a punch (Figr.10). Don’t use a screwdriver or any sharp tool. This can be driven through the plug, and make it difficult to remove. Remove the plug from the hopper before installing or operating the disposer.

DIAGNOSTIC CHARTS

The following diagnostic flow charts and wiring diagrams will help you to pinpoint the likely cause of the problem.

__10 Before installing a new garbage disposer remove the dishwasher connection plug if a dishwasher drain hose will be connected to the disposer.

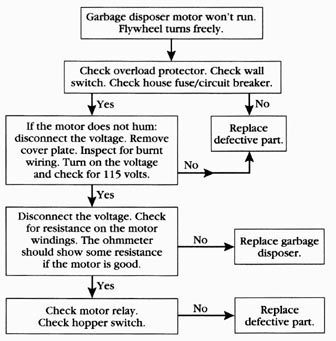

__12 Garbage disposer flow chart: garbage disposer motor won’t run.

  1. Garbage disposer motor won’t run. Flywheel turns freely.
  2. Check overload protector. Check wall switch. Check house fuse/circuit breaker.
  3. Yes--Replace defective part.
  4. No -- defective part.

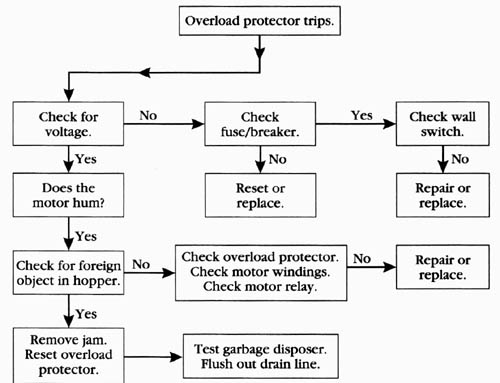

11 Garbage disposer flow chart overload protector trips.

If the motor does not hum: disconnect the voltage. Remove cover plate. Inspect for burnt wiring. Turn on the voltage and check for 115 volts.

Yes: Disconnect the voltage. Check for resistance on the motor windings. The ohmmeter should show some resistance if the motor is good.

Yes: Check motor relay. Check hopper switch.

Typical household garbage disposer wiring diagrams

Typical wiring diagrams (j) Continuous feed

On-off switch usually wall mounted motor

Batch feed with manual reverse

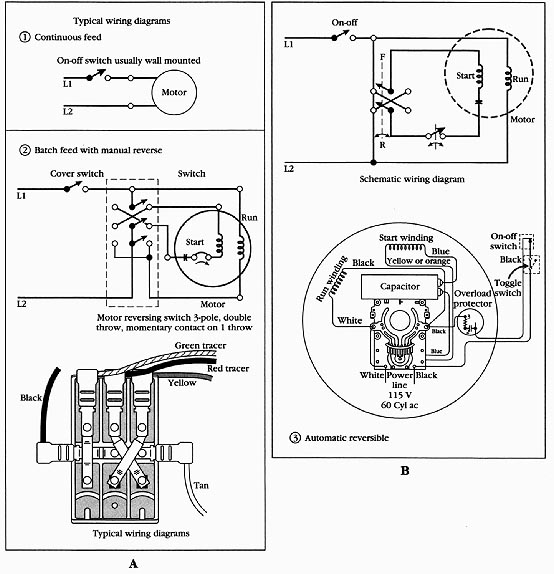

__13 Typical household garbage disposer wiring diagram.

On-off; Schematic wiring diagram

Motor reversing switch 3-pole, double throw, momentary contact on I throw

Automatic reversible; Typical wiring diagrams
